How to export HTML to PDF using ASP .NET MVC

In this article we will learn how to export Html to PDF using ASP .NET MVC

• How to Create PDF from HTML content using ASP.NET MVC
• How to Create and Download PDF

Let's take an example in MVC application and add a dummy HTML table and then export the HTML into PDF using itextsharp.xmlworker assembly.

Step-1
Create a new MVC Project ( we consider visual studio 2019)
Step-2
Go to Solution Explorer > right click on project name > select Manage NuGet package and install

Also you can download this package using package manager console of below command

Install-Package itextsharp.xmlworker -Version 5.5.13.1

Step-3

Add a Employee class inside Model folder

public class Employee
   {
     public string Name { get; set; }
     public string Email { get; set; }
     public string Address { get; set; }
     public string Phone { get; set; }
   }

Step-4

Open the HomeController and a dummy list of employee and return to razor view

 public ActionResult Index()
     {
       List<Employee> employees = new List<Employee>();
       employees.Add(new Employee() { Name="Thomas Hardy", Email="thomashardy@mail.com", Address="89 Chiaroscuro Rd, Portland, USA", Phone="(171) 555-2222" });
       employees.Add(new Employee() { Name="Dominique Perrier", Email = "dominiqueperrier@mail.com", Address = "Obere Str. 57, Berlin, Germany", Phone="(313) 555-5735" });
       employees.Add(new Employee() { Name="Maria Anders", Email = "mariaanders@mail.com", Address = "25, rue Lauriston, Paris, France", Phone = "(503) 555-9931" });
       employees.Add(new Employee() { Name="Fran Wilson", Email = "franwilson@mail.com", Address = "C/ Araquil, 67, Madrid, Spain", Phone = "(204) 619-5731" });
       employees.Add(new Employee() { Name = "Martin Blank", Email = "martinblank@mail.com", Address = "Via Monte Bianco 34, Turin, Italy", Phone = "(480) 631-2097" });
       return View(employees);
     }

Step-5

Open the ""Index.cshtml" and add the employee data into html table.

 @model List<Export_HTML_PDF.Models.Employee>
 @{
   ViewBag.Title = "Home Page";
 }
   <div class="row">
     <div class="col-md-8">
       <div id="PrintPDF">
         <div class="container">
           <table class="table table-striped table-hover">
             <thead>
               <tr>
                 <th>Name</th>
                 <th>Email</th>
                 <th>Address</th>
                 <th>Phone</th>
               </tr>
             </thead>
             <tbody>
               @foreach (var item in Model)
               {
                 <tr>
                   <td>@item.Name</td>
                   <td>@item.Email</td>
                   <td>@item.Address</td>
                   <td>@item.Phone</td>
                 </tr>
               }
             </tbody>
           </table>
         </div>
         </div>
       @using (Html.BeginForm("ExportHTML", "Home", FormMethod.Post))
       {
         <input type="hidden" name="ExportData" />
         <input type="submit" id="btnSubmit" value="Export" />
       }
       <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
       <script type="text/javascript">
     $(function () {
       $("#btnSubmit").click(function () {
         $("input[name='ExportData']").val($("#PrintPDF").html());
       });
     });
       </script>
     </div>
   </div>

Code Explanation

• Use <div id="PrintPDF"></div> and all your content is going to be printed in PDF file.
• Saves content in a hidden field control and used a submit button to download PDF File.

@using (Html.BeginForm("ExportHTML", "Home", FormMethod.Post))
        {
            <input type="hidden" name="ExportData" />
            <input type="submit" id="btnSubmit" value="Export" />
        }

• Used JQuery to fill hidden field control with div content.

@using (Html.BeginForm("Export", "Home", FormMethod.Post))
        {
            <input type="hidden" name="ExportData" />
            <input type="submit" id="btnSubmit" value="Export" />
        }

Step-6
Add the ExportHTML method inside HomeController

[HttpPost]
     [ValidateInput(false)]
     public FileResult ExportHTML(string ExportData)
     {
       using (MemoryStream stream = new System.IO.MemoryStream())
       {
         StringReader reader = new StringReader(ExportData);
         Document PdfFile = new Document(PageSize.A4);
         PdfWriter writer = PdfWriter.GetInstance(PdfFile, stream);
         PdfFile.Open();
         XMLWorkerHelper.GetInstance().ParseXHtml(writer, PdfFile, reader);
         PdfFile.Close();
         return File(stream.ToArray(), "application/pdf", "ExportData.pdf");
       }
     }

Code Explanation

• ExportData is hold the HTML and convert Html file through itextsharp.xmlworker .
• After read the HTML data it convert into PDF and download as "ExportData.pdf".

Step-7

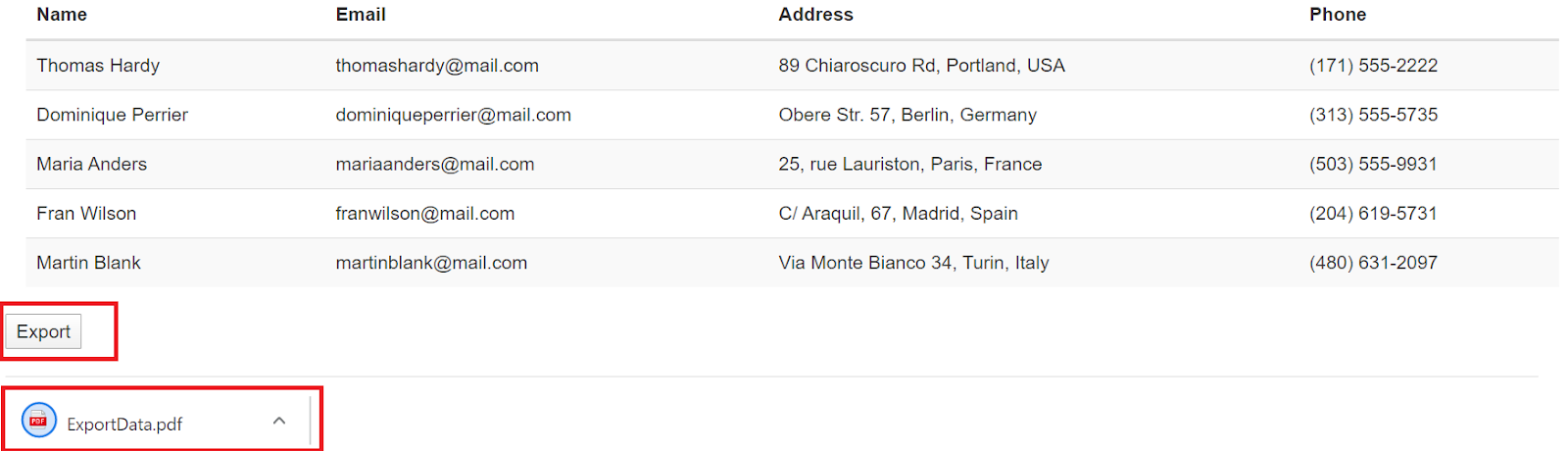

Finally run the application and click the export button

When the export button is clicked the PDF is downloaded into system.

You can see the dummy table data is printed on PDF.

</> Find the Source Code in Github.com/CoreProgramm/

Summary

   In this tutorial we discussed how to export HTML to PDF using ASP .NET MVC . If have any question related to this topic then give your feedback.
